Linear SLOT Diffuser

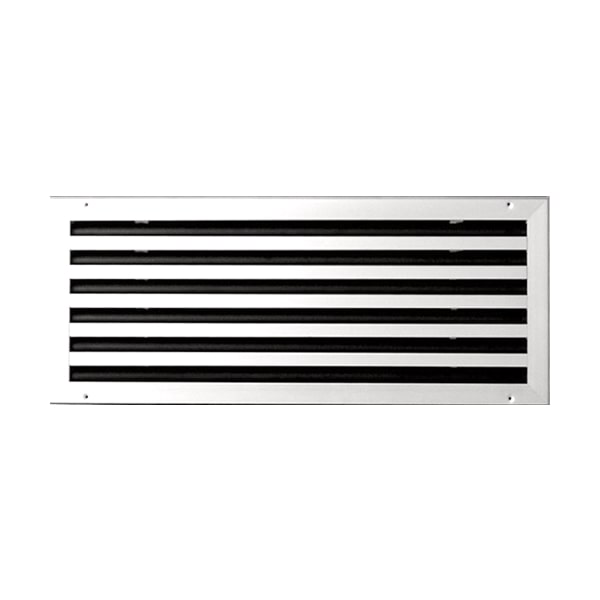

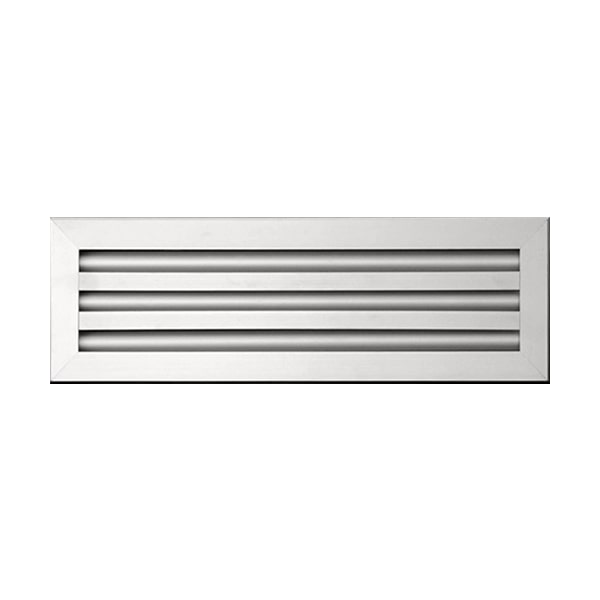

  • Linear slot diffuser for supply air with multiple slots (one, up to ten).
Category:

Description

  • Made by anodized aluminum.
  • The air jet is adjusted by a cylindrical blade inside every slot and can get any direction (180oarc).
  • Ceiling or wall mounted.
  • For use in heating and cooling cases, in low and medium installation height.
  • Noise and pressure drop remains the same in any position of the blade.

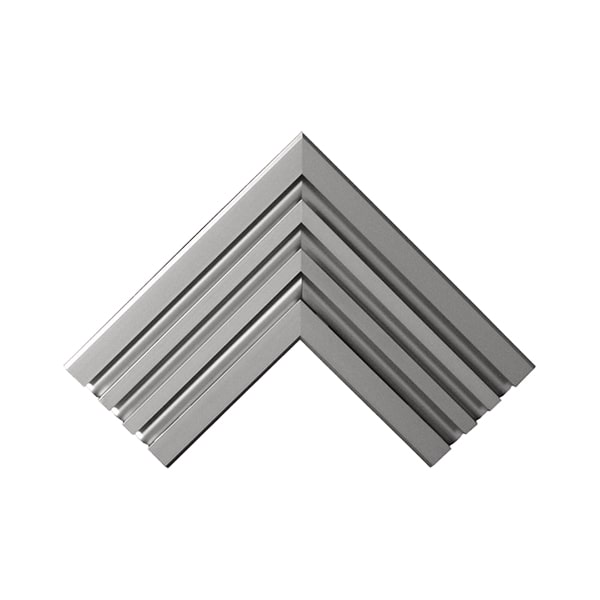

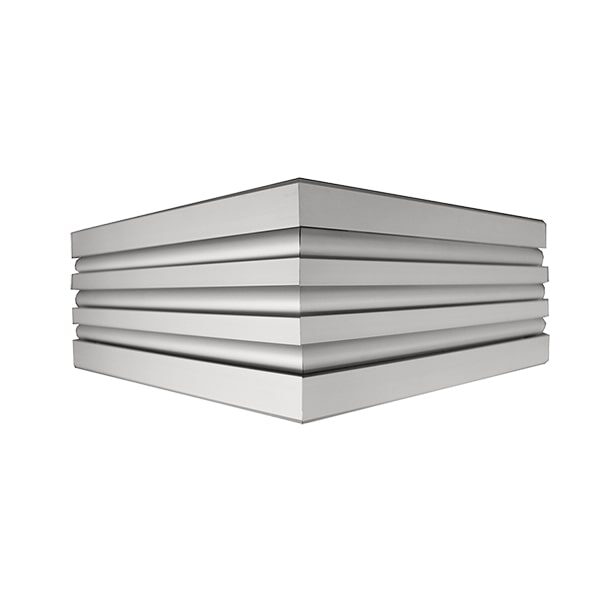

  • Also is possible: the electrostatic paint in RAL color, the manufacture of corner pieces 90o(up to 4 slots), the secret fixing with ‘Π’ frame (up to 6 slots).
  • With aluminum made, multiple leaf, air volume control damper with simultaneously opposite rotated blades.
  • With perforated equalizing grid.
