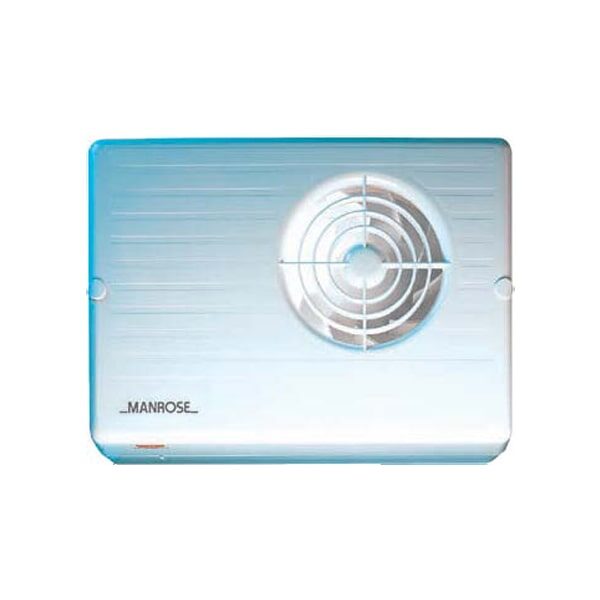

Centrifugal Fan CF200S series

The CF200 centrifugal fan,100mm diameter, uses the latest technology to provide extremely powerful, yet very quiet and vibration free ventilation and designed for bathrooms, toilets, cloakrooms and utility rooms.

Description

  • Designed to be mounted on walls or ceilings and discharged through a 100mm (4″) standard rigid or flexible duct, and are also suitable for use with flat duct channel systems.
  • Designed to move air over long distances, it will give maximum performance even against pressures caused by long lengths of ducting and resistance by grilles.
  • All models are fitted with a built-in spring-operated non-return flap into the discharge spigot to stop back draughts.
  • The CF200 have an extract rate of 110m3/h and maximum pressure 120 Pa
  • The unit are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.
  • Power is provided by a single-phase induction motor with pre-oiled bearings for a long, maintenance-free life.
