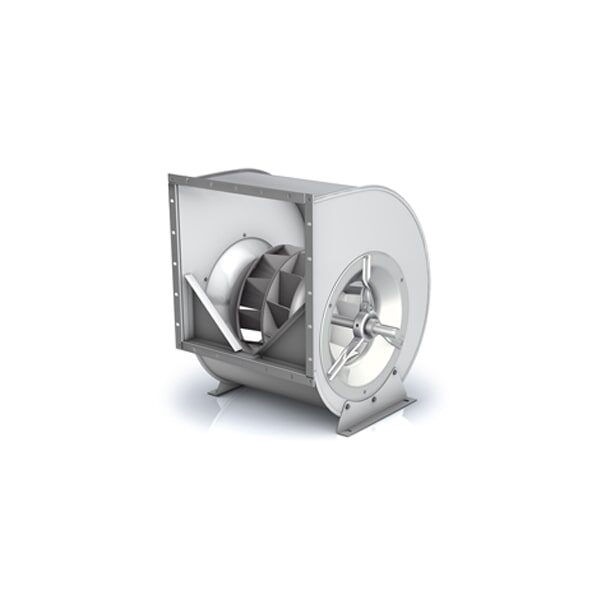

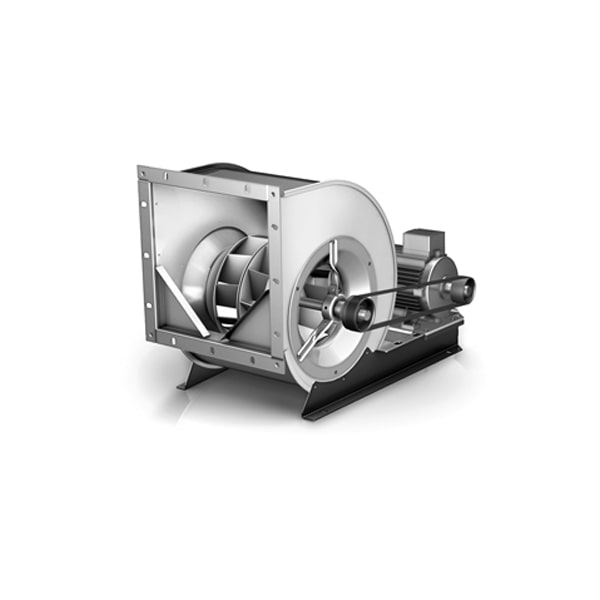

Belt Driven Double Inlet Centrifugal Scroll Casing Fans with Backward Curved Hollow Blades RZR series

  • Sizes 200 to 1600.

Description

  • RZR rotavent, double inlet with patented impeller geometry and tapered trailing airfoil blades are the leading edge for standard fans for ventilation and air conditioning units.
  • Lap jointed scroll of galvanized sheet steel with V-Cut off (RZR 11; 12; 14; 15; 18).
  • Scroll casing stitch welded and coated, with V-cut off (RZR 13; 19).
  • Centrifugal impeller with 11 backward inclined steel blades, welded and coated (0200/-0280).

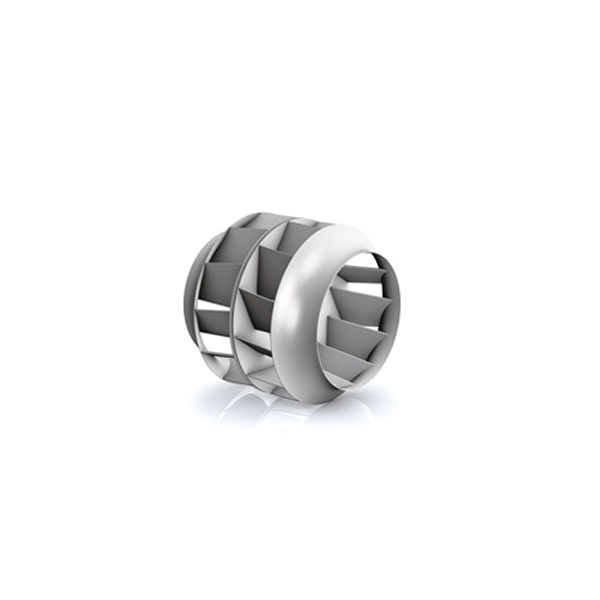

  • High performance impeller with 12 hollow section true airfoil blades (0315/-1600).
  • Volume up to 300,000 m3/h.
  • Pressure up to 3,500Pa.
