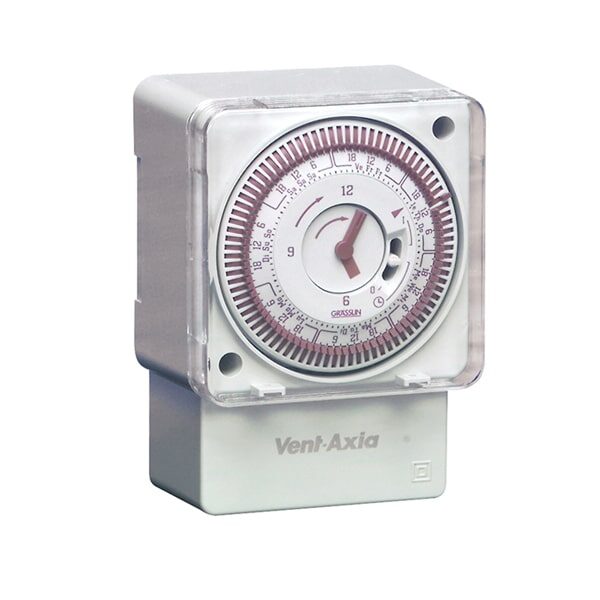

7-Day Time Switch

For applications where regular switching is required at fixed periods or at different times on different days of the week, e.g.: offices, shops and restaurants.

Category: Speed Controllers

Description
PDFs

Description

The 7-day Time Switch gives 12 On or Off positions per day and can be set for 7 days. The cycle will repeat until changed.
Removable clear plastic cover protects Time Switch face.
Maximum load: 16amp resistive (8amp inductive).
Analogue clock display and integral time switches for ease of setting.
Ambient operating temperature range -20°C to +85°C.
Dimensions: 104 x 74 x 52mm (H x W x D).
Supply voltage 220-240V/1/50Hz.
